BRIOHR API INTEGRATION FLOW



Project Overview
BrioHR provides the APIs integration for clients to enable seamless data exchange and automation between both platforms. This integration will enhance operational efficiency, reduce manual data entry, and improve overall user experience. BrioHR will provide comprehensive integration documentation to ensure smooth implementation and compatibility with the partner's system.

We provide the APIs that can be used by client to pull the data from our system into client’s system for any purpose that needed by client.

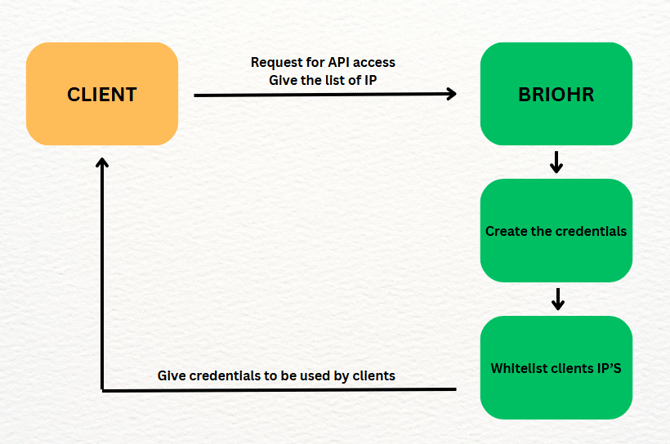

1. Integration Flow



The integration flow with BrioHR will consists of:

1. Client request for the APIs/integration access together with the list of IPs (recommended for securing the line of integration).
2. BrioHR will create the credentials for client. Consists of: Authentication credentials and client’s ID.
3. Client can try to connect to BrioHR API using the link, authentication & ID.



2. Specifications

Transport Mechanism

Protocol: HTTP/HTTPS

Base URL: https://static.api.briohr.com

Request Format: JSON/CSV

Response Format: JSON or CSV (specified via Accept header)

Character Encoding: UTF-8

Authentication

Method: API Key in Headers

Header Name: Authorization

Example:

1 curl --location 'https://static.api.briohr.com/v2/api/external/reports/employees-main-information/download? format=csv' \

2 --header 'Authorization: Basic aHotYXBwOmJyaW9ocg=='

Response Sample

json

1 {

2 "id": 1,

3 "name": "record 1"

4 }

csv

1 id,name

2 1,record 1



3. Features

3.1 Employee Data Synchronization

Automatic synchronization of employee records between BrioHR and the partner system. Real-time employee data tracking with the partner’s platform.

Support for viewing list of employee profiles.



3.2 Leave Synchronization

Integration of leave summary records.

Real-time leaves records tracking with the partner’s platform.



3.3 Claim Management

Integration of claim reports.

Uploading claim reports from client’s side into the system of BrioHR.

Real-time claim records tracking with partner’s platform.



4. Integration Documentation

BrioHR will provide detailed documentation, including:

API endpoints and request/response structures.

Authentication and security guidelines.



5. Use Cases

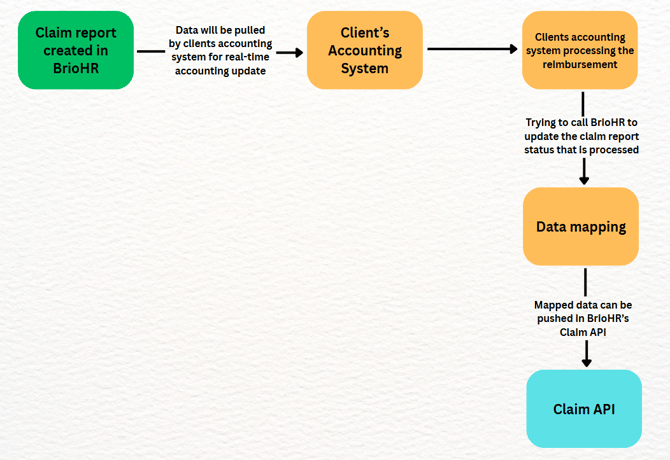

5.1 How to pay claims from an accounting system

Client that has an accounting system can be integrated with BrioHR.

Scenario:

1. Client has their own existing accounting system, manage and process all claim reports
2. Client will use BrioHR’s claim & payroll modules for recording and reimbursing the claims. Explanation of flow:
3. Once employee create the claim report, data can be pulled into client’s accounting system. 2. After the claim report processed, client can call BrioHR’s claim API to change & process the reimbursement. 3. Both system will have an up-to-date data to be sync each other.



Sample of data mapping for downloading claim’s reports

Sample of data mapping for update claim’s status (accept csv format only)



5.2 How to sync the employee list with reporting system

Scenario:

1. Client has their reporting dashboard.
2. Client wants to show the employee’s data for their analytics.

Explanation of flow:

1. Client can setup the scheduler to call BrioHR’s API for grabbing all employee data and details.
   2. Client can use that data and show them as an analytics report in their internal dashboard
